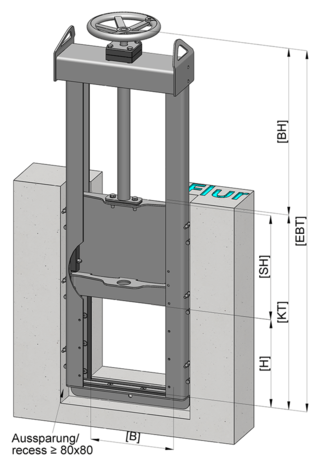

Channel sluice type RE3_

for no-groove, on-site grouting into rebates

For details please select a Marker
close

Details:

Hand wheel | Hand wheel steel (EKB coated) / stainless steel

1

Information:

  • Soft sealing on three sides in accordance with seal class 5 (DIN 19569 part 4)
  • Use as regulating or throttling protection.
  • The ABS U - sealing profile is force-closed and tension-restrained in order to achieve low frictional forces and torques
  • PE-UHMW slide rails for linear seal pressure
Detail frame:Detail sill:

  • Often used drives

  • Reference excerpts
